Cast Tungsten Carbide Flexible Welding Rope With NiCrBSi Matrix

  • 1
  • 2

Brand Name : BODA

Model Number : BD-WR2126

Certification : ISO9001:2015

Place of Origin : China

MOQ : Negotiable

Price : $60-70/kgs

Payment Terms : Negotiable

Supply Ability : 10 tons/month

Delivery Time : 7-15days

Packaging Details : 5kg/10kg/15kg per Coil

Carbide Hardness : 2100±100HV0.1

Coating Hardness : 55-65HRC

Purpose : Wear resistance

Process : Oxy-acetylene welding

Overlay Thickness : 2-8mm

Proportion of WC : 60-70%，CTC

Contact Now

Cast Tungsten Carbide Flexible Welding Rope With NiCrBSi Matrix

Physical Properties:

Grade Cast Tungsten Carbide Self-Fluxing Nickel Alloy
BD-WR2126 68% 32%

Item: Diameter Grain Size Length(mm) Weight/Coil

BD-WR2126/4

 Φ4.0mm

0.4-0.7mm=25-40mesh

0.2-0.4mm=40-70mesh

0.1-0.2mm=70-140mesh

 Coil 15 kg

BD-WR2126/5

 Φ5.0mm

0.4-0.7mm=25-40mesh

0.2-0.4mm=40-70mesh

0.1-0.2mm=70-140mesh

 Coil 15 kg

BD-WR2126/6

 Φ6.0mm

0.4-0.7mm=25-40mesh

0.2-0.4mm=40-70mesh

0.1-0.2mm=70-140mesh

 Coil 15 kg
  • Product information

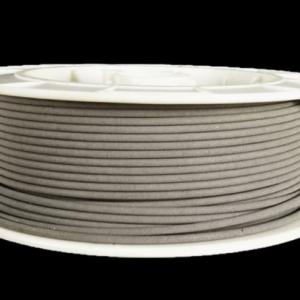

Cast tungsten flexible welding rope is made by cast WC and self-fluxing nickel alloy powder coated on the nickel wire.The cast WC has irregular shape,high hardness about 2200HV0.1 and excellent wear resistance.The self-fluxing nickel alloy powder is a spherical or nearly spherical shape,It's has a high wet ability after combined with cast tungsten carbide.

  • Applications

Coating Hardness: HRC 55-65

Overlay Thickness: 2-8mm

Applying Process :Oxy-acetylene Welding

Coating Property :Wear resistance,Anti-Corrosion

Application: Oil bit, stabilizer , geological bit, feed screw etc.

Product Features & Benefits:

  • Coating Hardness: HRC 55-65
  • Overlay Thickness: 2-8mm
  • Applying Process Oxy-acetylene Welding
  • Coating Property Wear resistance,Anti-Corrosion
  • Proportion of WC 60-70%,CTC or CTC-S
  • Proportion of Organic Binder 1-2%

Packing details:

Cast Tungsten Carbide Flexible Welding Rope With NiCrBSi Matrix

Wire and Rods series products:

Product Regular Particle Size Main Performance

Spray

Process

 Applicaitons
tubular welding rods #2 Dia7*400mm 20-30mesh Excellent wear resistance and impact resistance Welding

Surfacing of workpiece

surface in metallurgy, construction,

grain and oil processing,

mining machinery and other industries.
#3 Dia6*400mm 30-40mesh
#4 Dia 5*400mm 40-60mesh
#5 Dia4*400mm 60-80mesh
Flexible welding rope Dia4mm: F:0.2-0.4mm
M:0.4-0.7mm
C:0.7-1.2mm		 Wear resistance,Anti-Corrosion Oxy-acetylene Welding

Oil bit, stabilizer ,

geological bit, feed screw etc.
Dia6mm: F:0.2-0.4mm
M:0.4-0.7mm
C:0.7-1.2mm
Dia8mm: F:0.2-0.4mm
M:0.4-0.7mm
C:0.7-1.2mm

FAQ

Q1: Are you a manufacturer?
Answer: Yes, we are factory founded on 2007.

Q2:Can you give me a discount price?
Answer:Sure,It‘s depends on order quantity.

Q3:How can I get a sample?
Answer:free samples is available,but freight charges will be at your account and the charges will be return to you or deduct from your order in the future.

Q4: How to confirm the Product Quality before placing orders?
Answer:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples.

You can send us your product specifications and requests,we will manufacture the products accordingly.

Q5: :How do you treat quality complaint?
Answer:First of all, our quality control team will reduce the quality problem to near zero.

In case of there is a real quality problem caused by us, we will send you free goods for replacement or refund your loss.
